RSJ-590 + RT-3525

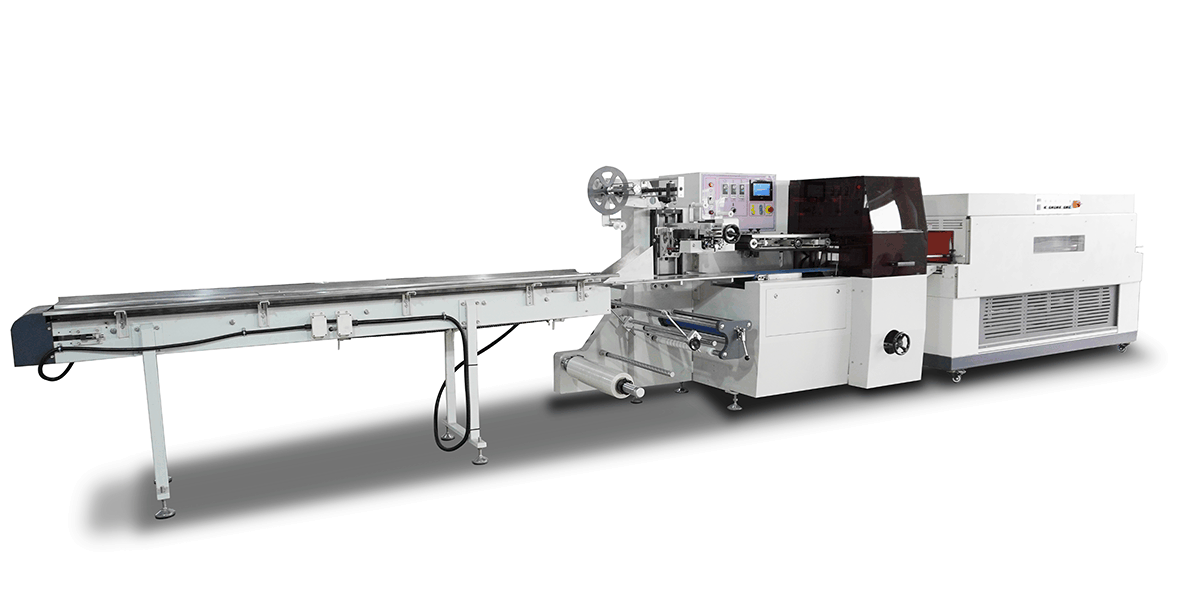

Automatic Electrostatic Adsorption Pillow Heat Shrink Packaging Machine

觀看視頻

在線詢盤

Product Details

MODEL	RS-590B
Sealing Type	High Speed Flow Sealing (Electrostatic Adherence Type）
Installed Power	Sealer: 220V/50-60Hz/1Phase Tunnel: 380V/50-60Hz/3Phase
Packing Capacity	150 Packs per Minute (Depends on Product Size)
Sealing Height	125MM
Packing Width	240MM
Packing Size	Width + Height ≤ 450MM
Film Type	Single Layer POF Film
Max Film Roll Size	590MM (Width) X 280MM (Outer Diameter)
Working Height	780-850 MM
Sealing Machine Dimensions	4930 X 1130 X 1500 MM
Conveyor	Chains with Rotating Silicon Coated Rods
Rated Power Consumption	Max. 16 KW
Working Height	780 - 850 MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	2400 X 600 X 1550 MM
Weight (Net/ Gross)	1600KGS/ 1680KGS (For Reference Only, Including Sealer and Tunnel)

Part 4 Bag Collecting Machine

The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.

Part 4 Bag Collecting Machine

The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
